Command Line Interaction Features

This section aims to explain how the command line interface (CLI) of Kea is designed and implemented, including how it handles command line arguments, YAML configuration files, and argument sanitization.

Feature Description and Design

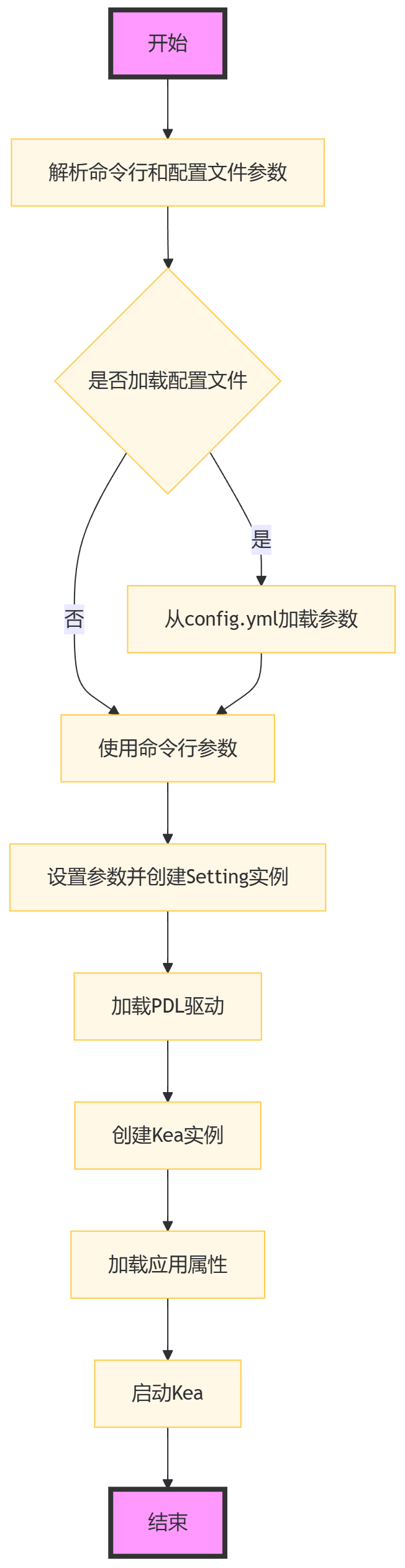

The following flowchart introduces the startup and configuration process of the Kea tool CLI. It encompasses the entire preparation and startup process for automated testing, from command line argument parsing, configuration file loading, test environment setup, to automated test execution. This way, users can configure the testing environment flexibly and automate the execution of test cases.

../../../_images/cli_flowchart.png — Flowchart of CLI Implementation

The specific execution steps are as follows:

Parse command line and configuration file parameters
- Create a parameter parser using the argparse library.
- Define the accepted command line arguments, such as -f for specifying the property file and -d for specifying the device serial number.
- Parse the command line input arguments.
Check if the configuration file is loaded
- Check if the --load_config flag is included in the command line arguments, which indicates whether parameters should be loaded from the configuration file config.yml.
Load parameters from `config.yml`
- If --load_config is specified, call the load_yaml_args function to read parameters from the config.yml file.
- These parameters will override the parameters specified in the command line.
Use command line arguments
- If --load_config is not specified, use the parameters obtained from command line parsing.
Set parameters and create a `Setting` instance
- Create an instance of the Setting class based on the parsed parameters, which contains all the required configuration information.
Load PDL driver
- Determine whether the target device is Android or HarmonyOS based on the is_harmonyos property in the Setting instance.
- Load the corresponding PDL (Property Description Language) driver based on the platform.
Create `Kea` instance
- Create an instance of the Kea class, which may be the core class of an automated testing framework.
Load application properties
- Load the application properties to be tested using the Kea.load_app_properties method, which define the application behaviors to be tested.
Start `Kea`
- Call the start_kea function, passing in the Kea instance and Setting instance to begin executing the automated testing process.
- The start_kea function will initialize DroidBot, which is the data generator for Kea and start the testing.

Command Line Argument Parsing

Kea uses the argparse library to parse command line arguments. Here are the main command line parameters:

-f or --property_files: Specify the property files for the application to be tested.
-d or --device_serial: Specify the serial number of the target device.
-a or --apk: Specify the path to the APK file of the application to be tested, or the package name of the application.
-o or --output: Specify the output directory, defaults to “output”.
-p or --policy: Specify the input event generation policy, defaults to “random”.
-t or --timeout: Specify the timeout duration (in seconds), defaults to a preset value.
-debug: Enable debug mode and output debug information.
-keep_app: Keep the application on the device after testing.
-grant_perm: Grant all permissions upon installation, useful for Android 6.0 and above.
-is_emulator: Declare the target device as an emulator.
-is_harmonyos: Use a HarmonyOS device.
-load_config: Load parameters from config.yml, command line parameters will be ignored.

YAML Configuration File

Kea supports specifying parameters through a YAML configuration file (config.yml) to simplify the parameter configuration process. Parameter values in the YAML file will override command line parameters.

Parameter Object

Kea defines a parameter object named Setting using dataclass, which is used for storing and passing parameters. This object contains all configurations related to testing.

Start Kea

Here is a brief description of the Kea startup process:

Parse command line arguments and the YAML configuration file.
Set up the parameter object Setting.
Load the corresponding PDL driver based on the target platform.
Create a Kea instance and load application properties.
Start Kea for testing.

Main Function Design

Here are the functional introductions of each main function in the Kea CLI:

parse_args function:
- Responsible for parsing command line input arguments.
- Sets the corresponding command line parameters based on user input and handles the -load_config option to decide whether to load parameters from the YAML configuration file.
The simplified code is as follows:

def parse_args():
    parser = argparse.ArgumentParser(...)
    parser.add_argument(...)
    options = parser.parse_args()

    # load the args from the config file `config.yml`
    if options.load_config:
        options = load_ymal_args(options)

    # sanitize these args
    sanitize_args(options)

    return options

load_yaml_args function:
- Responsible for reading parameters from the config.yml YAML configuration file.
- Applies the parameter values from the configuration file to the parameter object, overriding the command line input parameters.
The simplified code is as follows:

def load_yaml_args(opts):
    config = get_yml_config()
    key_map = {...}
    for key, value in config.items():
        key_lower = key.lower()
        if value and key_lower in key_map:
            key_map[key_lower](value)

    return opts

sanitize_args function:
- Sanitizes and validates the parsed parameters.
- Ensures that all parameters are valid and consistent before passing them to Kea.
The simplified code is as follows:

def sanitize_args(options):
    if not options.device_serial:
        identify_device_serial(options)
    if not options.apk_path or not options.property_files:
        raise Error
    if not options.apk_path.endswith(('.apk', '.hap')):
        sanitize_app_package_name(options)

Setting data class:
- Defines the data structure for configuration parameters required for Kea operation.
- Stores and manages parameters such as APK paths, device serial numbers, output directories, etc.
The simplified code is as follows:

class Setting:
    apk_path: str
    device_serial: str = None
    output_dir: str = "output"
    is_emulator: bool = True
    policy_name: str = "default_policy"
    event_count: int = 100
    keep_app: bool = None
    keep_env = None
    number_of_events_that_restart_app: int = 100
    is_harmonyos: bool = False
    generate_utg: bool = False
    is_package: bool = False

load_pdl_driver function:
- Loads the corresponding PDL driver based on the target platform (Android or HarmonyOS).
- Ensures that Kea can interact with the operating system of the target device.
The simplified code is as follows:

def load_pdl_driver(settings):
    if settings.is_harmonyos:
        from kea.harmonyos_pdl_driver import HarmonyOS_PDL_Driver
        return HarmonyOS_PDL_Driver(serial=settings.device_serial)
    else:
        from kea.android_pdl_driver import Android_PDL_Driver
        return Android_PDL_Driver(serial=settings.device_serial)

start_kea function:
- Initializes a DroidBot instance and sets up the PDL driver for Kea.
- Creates a Kea instance, loads application properties, and begins executing tests.
The simplified code is as follows:

def start_kea(kea, settings):

    # droidbot is used as the data generator of Kea
    droidbot = DroidBot(...)
    kea._pdl_driver.set_droidbot(droidbot)
    droidbot.start()

main function:
- Acts as the entry point of the program, linking the entire Kea startup process.
- Calls other functions to complete parameter parsing, configuration loading, PDL driver loading, and Kea startup.
The simplified code is as follows:

def main():
    options = parse_args()
    settings = Setting(...)
    driver = load_pdl_driver(settings)
    Kea.set_pdl_driver(driver)
    Kea.load_app_properties(options.property_files)
    kea = Kea()
    start_kea(kea, settings)
